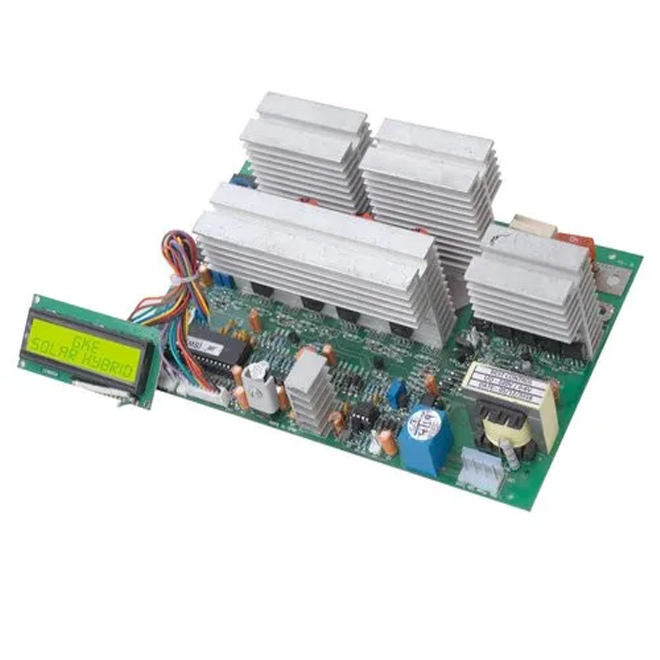

Solar Hybrid / PCU Sine Wave Inverter kit

Rated Power (Watt 850 VA- 1100 VA

Input Voltage12 V

PhaseSingle

Model Name/Number GKE-SWSOLAR

Output Voltage 230 V

Capacity 850 VA - 1100 VA

Brand GKE

Grid Type Off Grid

Warranty 1 Year

Output Frequency 50 hz

Power Factor 0.8

GKE- SWSOLAR

850 VA-1100 VA  / 12 V

Model

850VA-1100VA 12V

I/P Range Normal Mode100V-290 V

I/P Range UPS mode 180V-265 V

O/P Voltage battery mode 230 V

O/P Frequency 50 HZ

O/P Waveform    Sinewave

Solar Charging Current 40 A / 60 A

Maximum PV rating 500W /750W

Maximum PV Open circuit voltage 22 V

Charging Cutt off ( Mains) 14.0 V

Charging cutt off ( Solar ) 14.5 V

Automatic Temperature  Compensation Yes

Solar Charging type PWMTechnology Mosfet

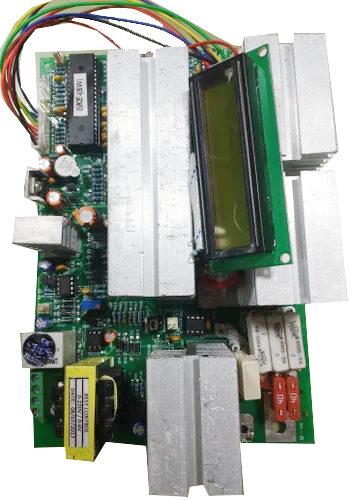

Solar Hybrid PCU Sine Wave Inverter Kit

GKE SOALR Hybird PCU Sine Wave Inverter kitis an integrated system consisting

 of a solar charge controller. Inverter and an AC mains charger. System gives priority to

 Solar Power first and uses Grid power only when Solar power/ Battery charge is insufficient

 to meet the load requirements. Battery Voltage, Solar power output and the load

 are continuously monitored. When Batteries are charged to preset level the

 Solar UPS automatically cuts off from the system and load runs through the

UPS using the batteries. Maximum battery charging is done through the solar

to reduce the energy used from grid power.

FEATURES:-

Most advanced integrated Solar backup.

Automatic utilization of the available Solar power in an intelligent manner.

Preference to Solar power when available.

Pure sinewave output in the backup mode.

Heavy duty battery charger with current sharing.

Option to switch off grid charger. (If solar current>3Amp)

Selectable Normal/Tubular battery charging.

Multiple stage battery charger to keep battery in top condition.

Smart overload and short circuit protection.

 Intelligent thermal management system.

LCD display to monitor the system.

LCD Display

When Grid Power Present

Displays – AC Voltage , Battery Charging status , Battery level , solar Module status ,

Solar Charging Current , Mode In back up

Displays – Back up mode On/off, Hybird mode on/off, Battery level ,

 Load level in %, Solar PV status Fault Conditions

Displays- Battery low , Overload , Short cicuit, Mains Failure,

Fuse blown, Temperature high, no load.
